Flo-Teck and Vari-Flo Jetter parts

Below are the replacement parts for the Flo-Tek and Vari-Flo Jetters.   Since the Flo-Tek is molded from a single piece, no front or back plates are listed, new covers are available.  The cups and holding plug are the same for the Flo-Tek and Vari-Flo Jetters.



Note:   As shown on the photo, arrow A is pointing to the top of cup # 4.  On top of the cup, a number is molded into the rubber (mold number) what is not a part number.  For your convenience, we have listed some of the mold numbers which may correspond with the following cup sizes:

A-711-A   Cup # 4,   35mm (1 3/8”)

A-912-A   Cup # 4,   40mm (1 9/16”)

A-668-A   Cup # 4,   45mm (1 3/4”)

A-798-A   Cup # 4,   45mm (1 3/4”) with high internal ribs.


Nobs have been molded on to the Jetter cups to prevent the cups from turning during installing or removing the milking cluster (arrow B).  Those nobs need to be installed in to the recessed areas of the round and square nozzle plate before installing the holding plug.



For additional information or pricing, please call at 1-800-586-6223 or contact us HERE







Part # 44362345   Vari-Flo # 4 rubber cup,   35mm opening


Part # 44362346   Vari-Flo # 4 rubber cup,   40mm opening


Part # 44362347   Vari-Flo # 4 rubber cup,   45mm opening


Part # 44362348   Vari-Flo # 4 rubber cup,   45mm opening



and with high internal ribs



Part # 44362360   Vari-Flo holding plug for # 4 rubber cup

Part # 44362370   Vari-Flo nozzle plate-round

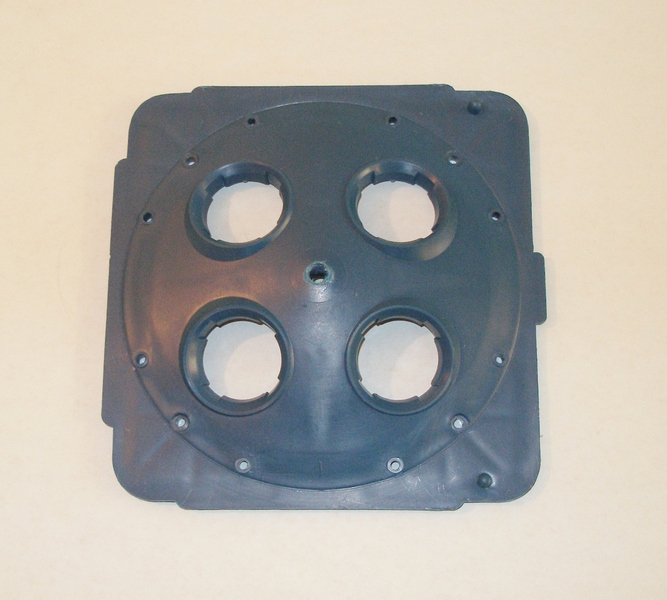

Part # 44362371   Vari-flo nozzle plate-square



Part # 44362374   Vari-Flo base (back plate) 38mm (1.1/2") tub



with double saddle pack



Part # 44362375   Vari-flo base (back plate) 51mm (2") tub



with double saddle pack



Part # 44362376  Vari-Flo base (back plate)



with hose mount nipple





Part # 44362380  Vari-Flo large "O" Ring for standard Nozzle



Part # 44362381  Vari-Flo large "O" Ring for jetter body



Part # 44362382  Vari-Flo "O" Ring (jetter to pipe line seal)



Part # 44362390   Vari-Flo double saddle pack.



Includes screws, "O" ring and two saddles



Part # 44362391   Vari-Flo double saddle pack.



Includes screws, "O" ring and two saddles



Part # 44362395   Vari-Flo saddle clamp old type.  Single clamp



Part # 44362396   Vari-Flo saddle clamp old type.  Single clamp

Part # 44362410   Vari-Flo Jetter cover with hinge and screws



Part #44362411   Vari-Flo cover hinge





Part # 44362420   Vari-Flo base plate body screw



Part # 44362421   Vari-Flo Jetter saddle pack screws



Part # 44362426   Fari-Flo screws for cover hinge



Part # 44362428   Vari-Flo metering screw



Part # 44362430   Vari-Flo stainless steel swing out



bracket with 38mm (1.1/2") clamp



Part # 44362431   Vari-Flo stainless steel swing out



bracket with 51mm (2") clamp
